Custom Double Wall Cardboard Boxes: The Definitive UK Engineering Guide to Heavy-Duty Corrugated Packaging

In the fast-paced world of modern British logistics, supply chain efficiency relies entirely upon packaging that performs under intense physical duress. From automated parcel sortation super-hubs in the Midlands to multi-tiered pallet racking across unheated distribution warehouses, and the relentless vibration of freight transit along the M1, M6, and M25 motorway corridors, commercial shipments face extreme mechanical stresses. When consignments involve heavy engineered components, delicate precision instruments, dense liquids, ceramic homewares, or high-value consumer goods, standard single wall cartons frequently fail—resulting in creased corners, collapsed fluting, punctured side panels, and costly inventory write-offs.

At Custom Packaging Boxes UK, we manufacture industrial-grade, bespoke double wall cardboard boxes engineered specifically to eliminate transit damage, optimise pallet cube utilisation, and safeguard your brand reputation. Built using a robust five-layer composite architecture, our custom double wall cartons deliver up to twice the vertical stacking strength and puncture resistance of single wall packaging, providing an impenetrable barrier for UK domestic courier distribution and international export freight alike.

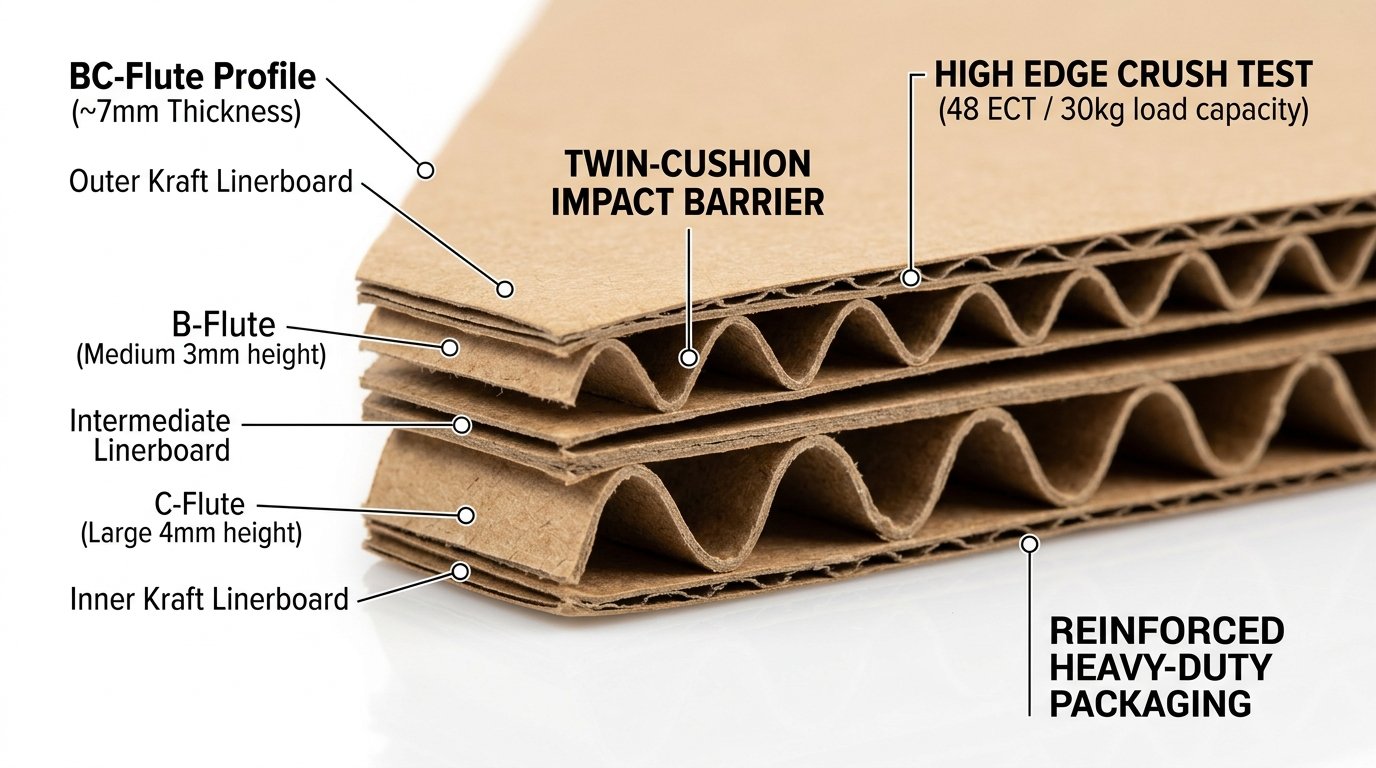

The Anatomy of Double Wall Corrugated Board: Five-Layer Structural Physics

Unlike single wall corrugated board—which consists of only one fluted wave between two liners—double wall cardboard is a sophisticated, twin-ply sandwich engineered from five distinct paper layers bonded under heat and pressure with food-grade starch adhesive:

• Outer Facing Linerboard (150gsm – 200gsm): The first line of defence against external abrasions, damp weather, and puncture hazards. We utilise virgin Scandinavian Kraftliner with long, unbleached softwood fibres that provide superior burst resistance and a smooth, lint-free surface for sharp flexographic and lithographic branding.
• Primary Fluted Medium (B-Flute, ~3mm): Situated directly behind the outer liner, the B-flute features approximately 150 flutes per linear metre. Its tight, dense wave profile offers extraordinary resistance to localized punctures, sharp impacts, and surface crushing.
• Intermediate Centre Linerboard: An essential internal structural anchor that separates the two fluting layers. By locking the two wave profiles into a rigid composite beam, it prevents lateral shear failure when boxes are subjected to dynamic torque and transit vibration.
• Secondary Fluted Medium (C-Flute, ~4mm): Featuring approximately 120 flutes per linear metre, the taller C-flute wave delivers supreme vertical column strength and superior energy-absorption cushion. When heavy pallets are stacked four-high in a warehouse, the C-flute absorbs the compressive deadweight load.
• Inner Facing Linerboard: The interior protective surface that cradles your packed products. Smooth Testliner or Kraftliner prevents scuffing against product finishes while maintaining internal box squaring under load.

Corrugated Flute Profiles: Choosing the Right Double Wall Combination

While BC-flute represents the gold standard for heavy freight and warehouse storage, we also engineer alternative double wall configurations to match bespoke commercial criteria:

Structural Rigidity Metrics: Edge Crush Test (ECT) vs. Box Compression Test (BCT)

When engineering custom heavy-duty packaging, packaging professionals evaluate two fundamental physical parameters to ensure boxes withstand rigorous handling without structural collapse:

Paperboard Substrates & Liners: Kraft vs. Testliner

The performance of any corrugated box is dictated by the virgin fibre content of its paperboard liners. We supply three primary liner options calibrated to your budgetary and performance thresholds:

1. Virgin Scandinavian Kraftliner (150K / 200K)

Manufactured from 100% virgin chemical pulp derived from slow-grown Scandinavian pine and spruce. The exceptionally long wood fibres create an interlocking matrix with unmatched tensile and tear strength. Kraftliner delivers superior moisture resistance, holds hot-melt and water-activated gummed tape with fierce adhesion, and withstands repeated handling in wet or unheated British courier depots.

2. High-Performance Recycled Testliner (150T / 175T)

Formulated from 100% recycled post-consumer waste paper. Testliner is treated with surface starches to boost surface tension and print clarity. While slightly less moisture-resistant than virgin Kraft, Testliner is an economical, highly sustainable choice for intermediate liners, interior fluting, and dry domestic warehouse distribution.

3. Bleached White Top Kraftliner

For brands seeking an upscale, premium unboxing aesthetic, White Top Kraft provides an immaculate, brilliant-white exterior surface. When printed with vivid brand graphics, hazard symbols, handling instructions, or high-density EAN barcodes, it offers crisp photographic contrast without compromising the underlying structural punch of double wall board.

FEFCO Box Styles: Precision Dielines for Heavy Cargo

We precision cut custom double wall packaging across all industry-standard European Federation of Corrugated Board Manufacturers (FEFCO) styles:

• FEFCO 0201 (Standard American Box / RSC): The universal workhorse of British industry. All four flaps are equal in length, meeting cleanly in the centre. It produces virtually zero corrugated board waste during manufacture, keeping unit costs exceptionally competitive for high-volume dispatch.
• FEFCO 0203 (Fully Overlapping Flaps / FOL): The outer flaps extend across the entire width of the carton, overlapping completely. This creates four full layers of corrugated board across the top and bottom of the erected box, virtually eliminating the possibility of bottom blowout when shipping dense metallic parts, books, or engine components.

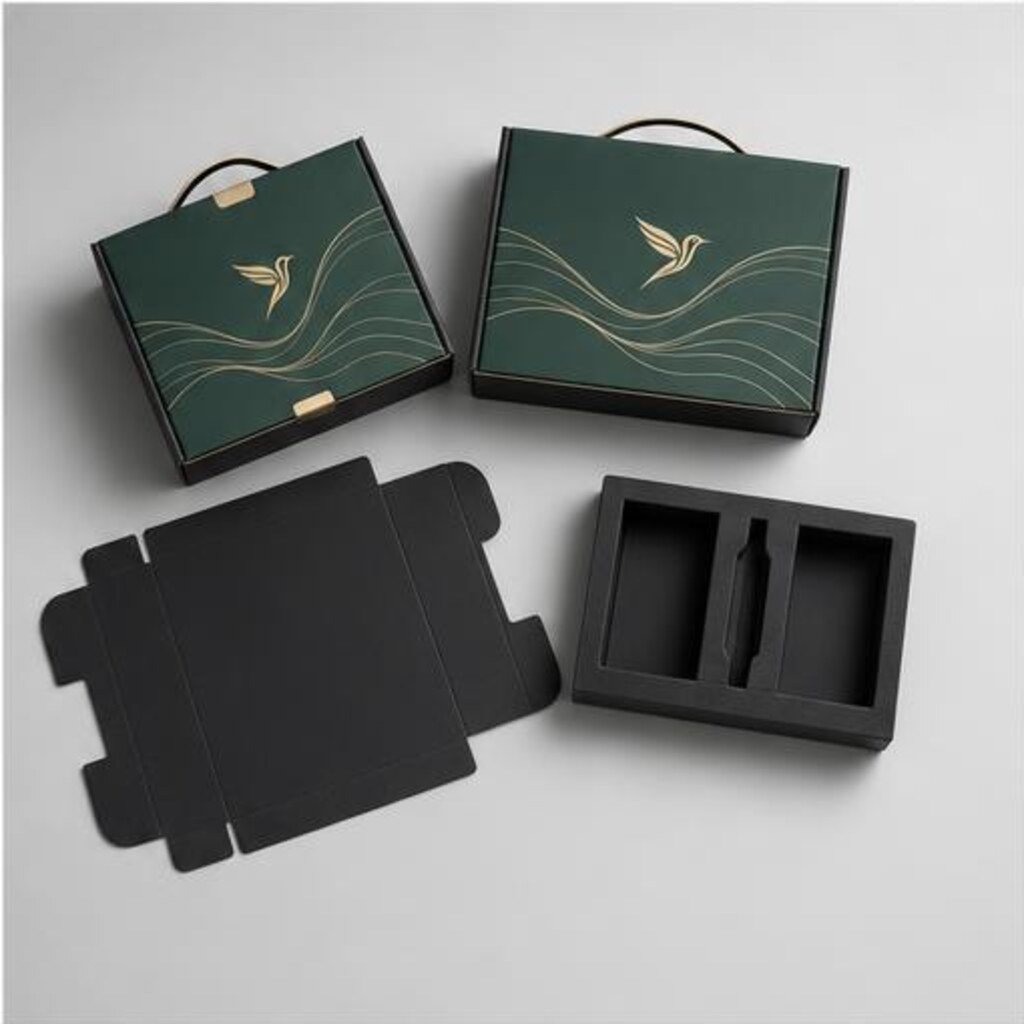

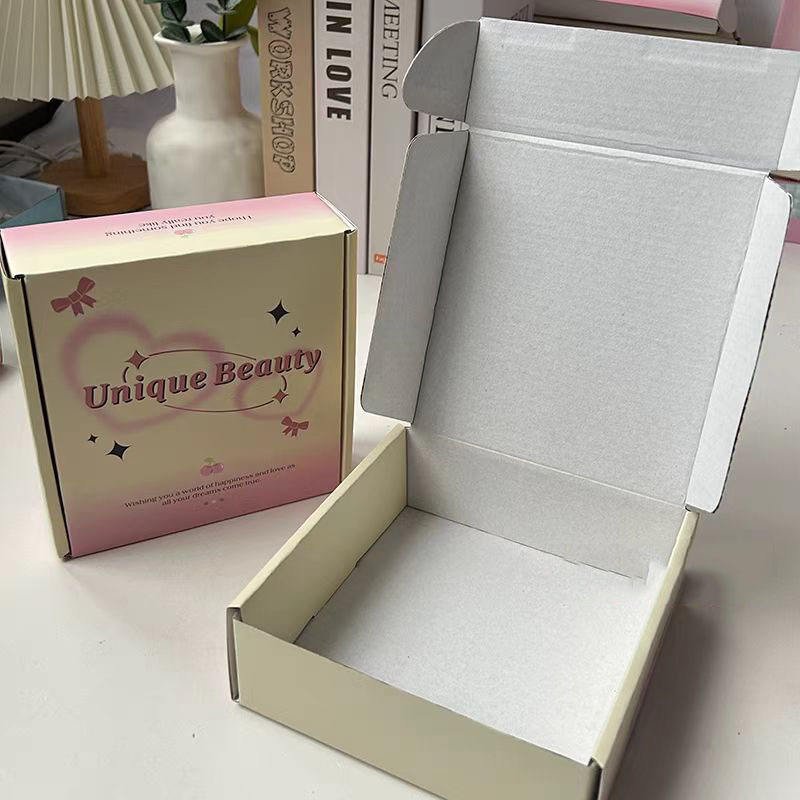

• FEFCO 0427 (Roll End Tuck Front Mailer): An engineered self-locking presentation box featuring dust flaps and a hinged lid. Fabricated in heavy-duty EB or BC flute, it provides an exquisite presentation unboxing experience for heavy subscription goods, boutique spirits, and consumer electronics.
• FEFCO 0301 (Telescopic Lid and Base): A two-piece design where the lid slides over the base tray. Essential for items that must be loaded vertically or accessed repeatedly during multi-stage assembly lines.

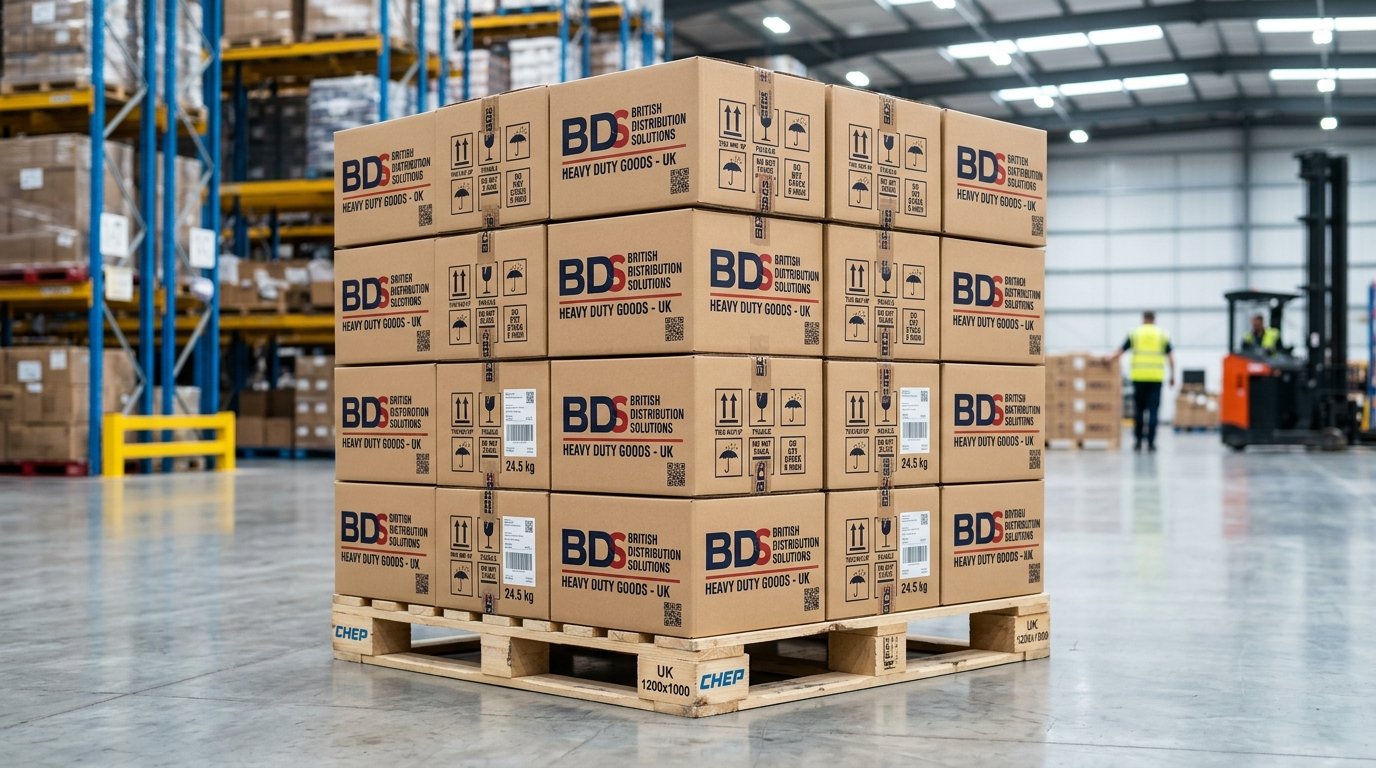

Palletisation & Courier Logistics: Maximising UK Distribution Efficiency

A double wall box is only as effective as its integration into broader logistics networks. Here is how our custom sizing optimises storage and transit costs:

• Modular UK Pallet Fit (1200 × 1000 mm): We engineer custom box footprints that tile perfectly onto standard UK pallets with zero overhang. Crucial logistics note: Just 25mm of box overhang past the wooden pallet edge decreases box compressive stacking strength by up to 32%, dramatically increasing collapse risks during freight transport.
• Euro Pallet Modularity (1200 × 800 mm): For European exports, our dimensions align with the Continental Euro-pallet grid, avoiding wasted cubic freight volume in road trailers and shipping containers.
• Royal Mail & UK Courier Tier Compliance: Dimensions can be calibrated precisely to sit just beneath courier volumetric surcharge thresholds across DPD, Evri, Royal Mail Parcelforce, DHL Parcel UK, and FedEx, ensuring you never pay premium penalty rates for dead air.
• Tape Adhesion & Tamper-Evidence: The porous, natural fibres of our Kraftliner form an instantaneous covalent bond with water-activated reinforced gummed paper tape. Once dry, the tape cannot be peeled off without visibly delaminating the box surface, providing tamper-evident security against pilferage.

Comprehensive Technical Specifications Comparison

Frequently Asked Questions: Custom Double Wall Cardboard Boxes
